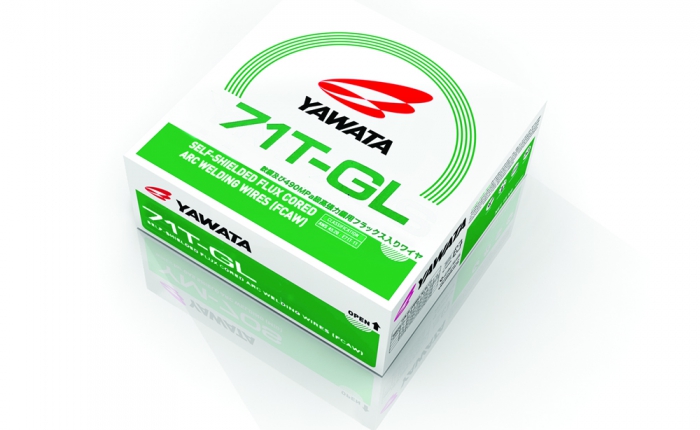

YAWATA 71T-GL
Self-shielded flux cored arc welding wire
(For 490N/mm2 High Tensile Strength Steel)
Classification : AWS A 5.20 / A 5.36 : E71T-11
Approvals :-
Application : is a self-shielded flux cored arc welding wire. Recommended for welding of mild and medium strength steel where wind is problematic with gas shielded processes such as outdoor welding
0.8mm x 5 kg spool, 1.0mm x 5 kg spool
YAWATA 71T-GL is a self-shielded flux cored arc welding wire. Recommended for welding of mild and medium strength steel where wind is problematic with gas shielded processes such as outdoor welding
AWS A 5.20 / A 5.36 : E71T-11
|
C
|
Si
|
Mn
|
P
|
S
|
Nie
|
Moe
|
|
|
Req.
|
≤0.30
|
≤0.60
|
≤1.75
|
≤0.030
|
≤0.030
|
≤0.50
|
≤0.30
|
|
Typ.
|
0.14
|
0.26
|
0.45
|
0.012
|
0.014
|
0.012
|
0.034
|
Typ. = Typical results
N.S. = Not Specified
C.L. = Combined Limit for Mn + Ni + Cr + Mo + V
e = The analysis of these element shall be reported only if intentionally added.
| Shield Gas | Tensile Strength N/mm2 (kgf/mm2) |
Yield Strength N/mm2 (kgf/mm2) |
Elongation % |
Chary 2V-notch @-20๐C, J (kgf.m) |
|
| Req. | Self-shielded | 490-660 | ≥400 | ≥22 | N.R. |
| Typ. | Self-shielded | 560 | 450 | 26 | N.R. |
N.R. = Not Required
-
-
